Configuring LANforge WiFIRE with RADIUS

Background Info:

http://www.smallnetbuilder.com/wireless/wireless-howto/30210-how-to-setting-up-freeradius-for-wpa-a-wpa2-enterprise-part-1?start=1
http://www.zdnet.com/blog/ou/understanding-the-updated-wpa-and-wpa2-standards/67

Freeradius HOW-TOs:

http://deployingradius.com/documents/configuration/pap.html
http://www.smallnetbuilder.com/wireless/wireless-howto/30213-how-to-setting-up-freeradius-for-wpa-a-wpa2-enterprise-part-2

Freeradius Setup NOTES:

• AP is Netgear WNDR3700v2 with WPA/WPA2 Enterprise enabled on 2.4GHz Channel 1 ssid:netgear-2g-01.
• radius-server 192.168.100.123 has one port (eth1) wired to the Netgear LAN port. This eth1 is the RADIUS server port. System is running Fedora Linux.
• radius-server has freeradius and freeradius-utils installed.

Start with the deployingradius.com site to get started: from configuring PAP through creating production certificates. You should have a modified ca.cnf, server.cnf and client.cnf.

Continue setup with the smallnetbuilder site part 2 "Creating the Client and Server Keys" but use the client.cnf and ca.cnf to generate the key pair, sign the certificate and generate the pkcs12 file. See commands below:

cd /etc/raddb/certs

openssl req -new -config client.cnf -keyout client_key.pem -out client_req.pem

openssl ca -config ca.cnf -in client_req.pem  -out client_cert.pem

openssl pkcs12 -export -clcerts -in client_cert.pem -inkey client_key.pem -out client.p12

DO NOT modify the radiusd.conf file. Only need to modify the following files:

/etc/raddb/users - add entry: client Auth-type := EAP
/etc/raddb/sites-enabled/default - comment out the preprocess module
/etc/raddb/eap.conf - set the default_eap_type = tls
/etc/raddb/clients.conf - add stanza for Netgear AP

client 192.168.2.1 {
        secret      =   lanforge
        shortname   =   wireless_ap
        nastype     =   other
}

LANforge Configuration NOTES:

SCP the ca.pem and client.p12 files to the LF wireless emulator for use by wireless clients.

Method 1: Use the LANforge-GUI Modify window to change the wireless station authentication values.

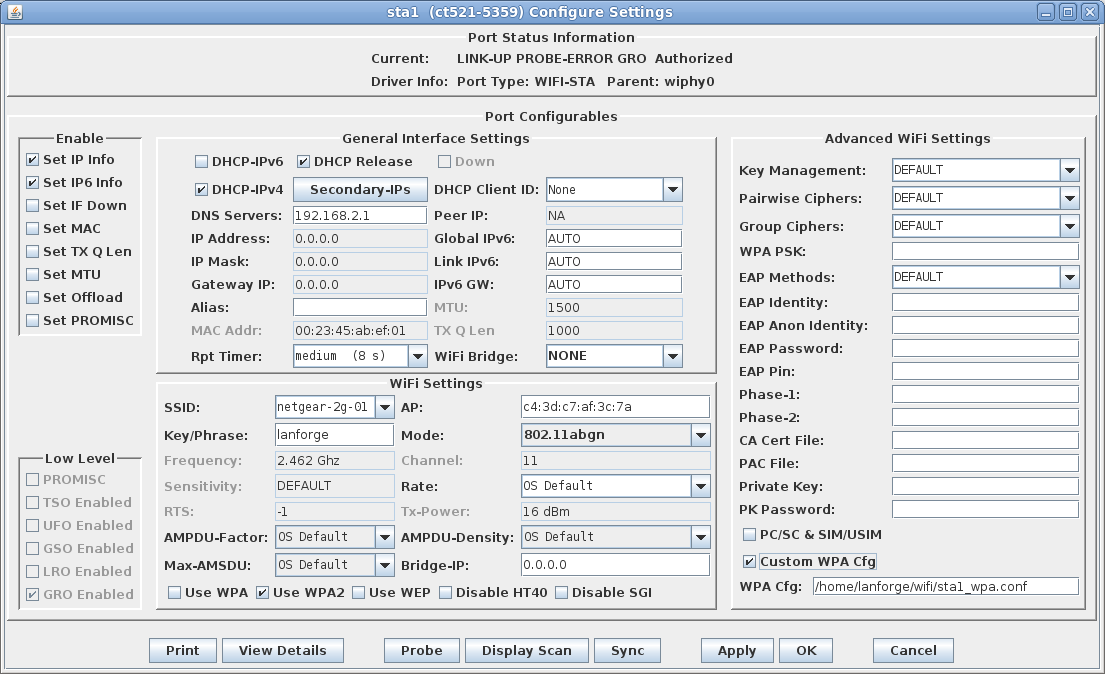

Method 2: Use the LANforge-GUI Modify window to enter a custom wpa supplicant configuration file for the wireless station.

[root@ct521-5359 wifi]# cat sta1_wpa.conf
ctrl_interface=/var/run/wpa_supplicant
fast_reauth=1
can_scan_one=1
min_scan_gap=5
bss_max_count=2000
eapol_version=1
network={
    ssid="netgear-2g-01"
    bssid=c4:3d:c7:af:3c:7a
    disable_ht=0
    disable_ht40=0
    ht_mcs=""
    disable_max_amsdu=-1
    ampdu_factor=-1
    ampdu_density=-1
    proto=RSN
    key_mgmt=WPA-EAP
    #psk="lanforge"
    psk=434cecc6bf8ccf77c84e4946290c095e5326725288249062b2ad07c724b98a30
    eap=TLS
    pairwise=CCMP TKIP
    group=CCMP TKIP
    identity="client"
    password="lanforge"
    ca_cert="/home/lanforge/wifi/ca.pem"
    private_key="/home/lanforge/wifi/client.p12"
    private_key_passwd="lanforge"

}

As root, use radiusd -X to start the RADIUS server and monitor output on the radius-server machine.

The virtual stations should automatically associate, acquire a DHCP IP address and be ready to generate and receive traffic.
